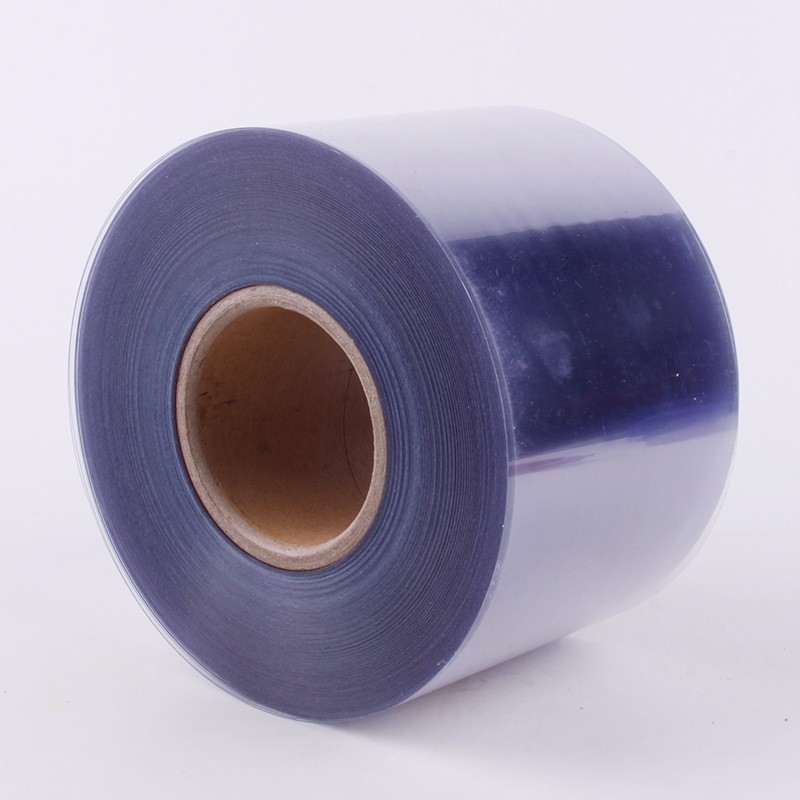

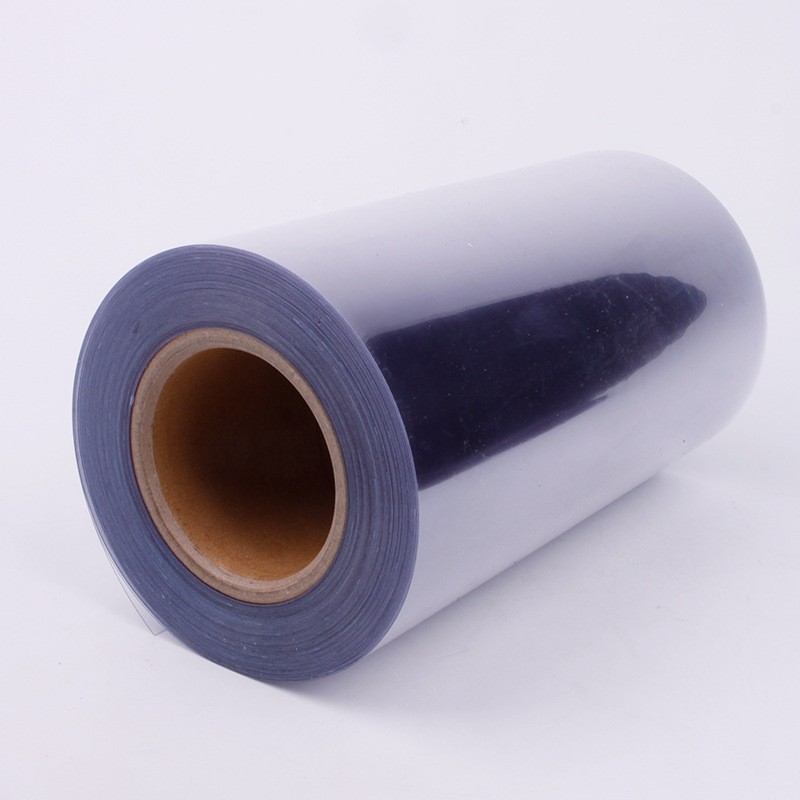

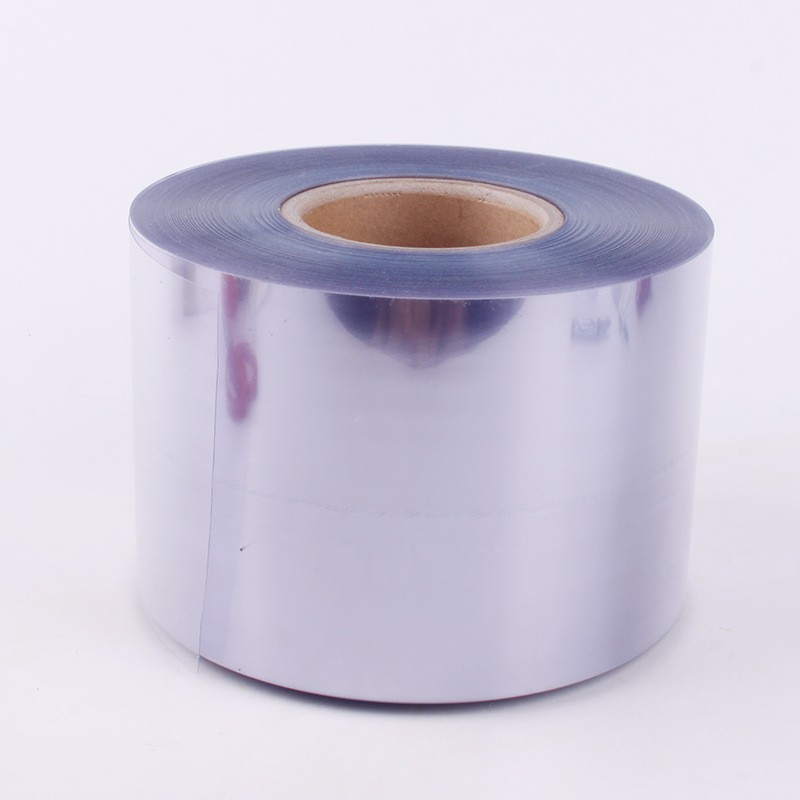

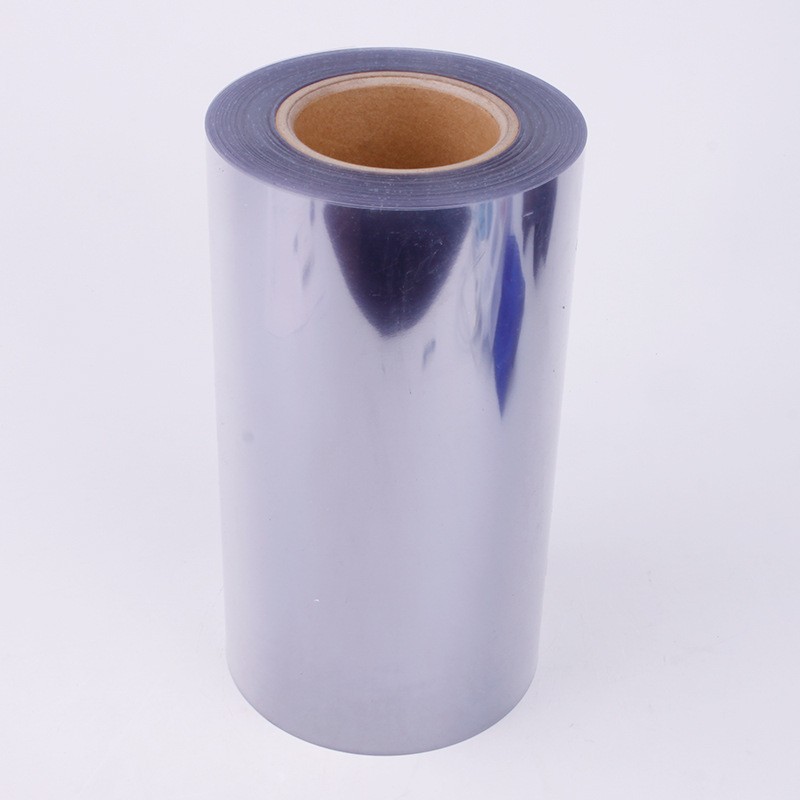

Hot sale transparent rigid pvc sheet roll for blister packing
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll
pvc plastic sheet roll

Hot sale transparent rigid pvc sheet roll for blister packing

HSQY Plastic is a professional PVC sheet manufacturer in China. Its main products are clear PVC sheets and colored rigid PVC sheets, which can have a matte, high glossy, frosted surface. HSQY Plastic offers specialized PVC sheets with additional properties such as UV resistance, adhesive, antistatic, and more. We also offer other plastic sheets and films suitable for various applications, including food packaging, and industrial uses.

Product Detail

Clear PVC Sheet

Rigid PVC sheet is a polymer material made from vinyl chloride as raw material, adding stabilizers, lubricants and fillers. Rigid PVC sheet has two production processes: extrusion and calendering. They are a versatile and cost-effective solution for a wide range of applications across industries.

Clear PVC sheet is a type of rigid PVC sheet. Compared with colored PVC sheets, it does not add color masterbatch and is the original color. These sheets have excellent transparency for optimal visibility while having all the properties of rigid PVC sheets.

ZH-pvc clear 5x3.jpg

PRODUCT PARAMETERS

ThicknessWidthDensityYoung’s modulus of elasticity (E)
0.05mm - 10.0mmMax. 1600mm
1.38g/cm32900-3400 MPa
Tensile strength (σt)Elongation at breakGlass transition temperatureMelting pointSoftening temperature
50-80 MPa20-40%87℃212°C85℃
Thermal conductivity (λ)Coefficient of thermal expansion (α)Heat capacity (c)Water absorption (ASTM)
0.16 W/(m·K)8×10-5 /K0.9 kJ/(kg·K)0.04-0.4

FEATURES

Clarity:

Clear PVC sheets are transparent with a blue tint and fillers are added during production for maximum visibility.


Durability:

Rigid PVC sheet is a strong material with high impact resistance and weather resistance.


Versatility: Clear PVC sheets can be easily cut, formed, molded and have good vacuum forming properties for a variety of applications.


Chemical Resistance:

PVC clear sheets are resistant to a wide range of chemicals and are suitable for use in harsh environments.


Cost-Effectiveness:

PVC clear sheets offer cost-effective solutions for a variety of applications.

Applications Industries

Construction: For windows, skylights and protective barriers.


Retail: Display cases, signage, and product packaging.


Automotive: Headlight covers, interior panels, and protective shields.


Medical: Protective barriers, equipment enclosures, and packaging.


Hospitality: Menu covers, table protectors, and decorative elements.


Choosing the Right PVC Clear Sheet

Thickness:

Clear PVC sheets have a certain thickness range, please choose the appropriate thickness according to the application.


Size and shape:

Clear PVC sheets are commonly found in sheets and rolls, ensuring the sheet is the correct size to fit the intended area or application.


Clarity:

Choose clear PVC sheets with high optical clarity for maximum visibility, and Rigid PVC sheets can be colored.


Special use:

In some special cases, rigid PVC sheets can provide specific properties, such as UV resistance, flame retardancy, etc.

PRODUCTION PROCESS

ZH-pvc clear 8x 01.jpgRaw Materials
ZH-pvc clear 8x 02.jpgPlasticization
ZH-pvc clear 8x 03.jpgProduction
ZH-pvc clear 8x 04.jpgAdjusting parameters
ZH-pvc clear 8x 06.jpgThickness testing
ZH-pvc clear 8x 07.jpgPackaging

PACKING & DELIVERY

Sample
A4 size clear PVC sheet with pe film
Sheet packing
as your requirement
Roll packing
as your requirement
Pallets packing
500- 1000kg per pallet
Container load
20GP, 40GP
MOQ
1000kg
