Why Our PET Sheets Maintain Optical Performance Batch After Batch

A PET Sheet Manufacturer's Guide to Consistent Clarity, Haze, and Gloss — Every Time

Key Takeaways

Introduction

If you've ever received a PET sheet that looked crystal clear in one batch but turned hazy or yellow in the next, you know the frustration. Optical inconsistency doesn’t just affect aesthetics — it impacts product performance, brand perception, and production efficiency.

For a PET Sheet manufacturer, maintaining optical performance batch after batch is not a luxury. It's a fundamental requirement. Whether your sheets are used for food packaging, blister packs, retail displays, or industrial applications, your customers expect the same clarity, haze, and gloss every single time.

So how do we ensure that? This article walks through the complete process — from raw material selection to final inspection — that allows us, as a PET Sheet manufacturer, to deliver consistently superior optical performance.

1. Raw Material Selection: The Foundation of Optical Consistency

The journey to consistent optical performance begins before the first sheet is ever extruded.

Virgin PET Resin: The Consistency Advantage

PET resin is the single most important factor determining optical properties. Studies show that virgin PET is consistent, whereas recycled content can introduce variability that affects clarity and color. That's why we source our PET resin from reputable suppliers with proven track records of providing consistent, high-grade materials.

Before establishing a long‑term partnership, we conduct in‑depth evaluations of each resin supplier. This includes analyzing molecular weight, viscosity, intrinsic viscosity, and testing for impurities. Higher molecular weight generally results in better mechanical properties and optical clarity. Even trace contaminants can affect clarity, color, and overall performance.

Why This Matters to You

When you work with a PET Sheet manufacturer that controls raw material quality at the source, you eliminate the most common cause of optical variation. You get sheets that look the same — batch after batch, year after year.

2. Precision Extrusion: Where Optical Properties Take Shape

Raw material quality means nothing without precise manufacturing. The extrusion process directly determines thickness uniformity, surface smoothness, and internal stress — all of which affect optical performance.

Temperature Control: The Critical Variable

Temperature control during extrusion is crucial. If the temperature is too high, the resin may degrade, leading to yellowing and reduced mechanical properties. If it's too low, the resin may not melt uniformly, resulting in uneven thickness and surface defects.

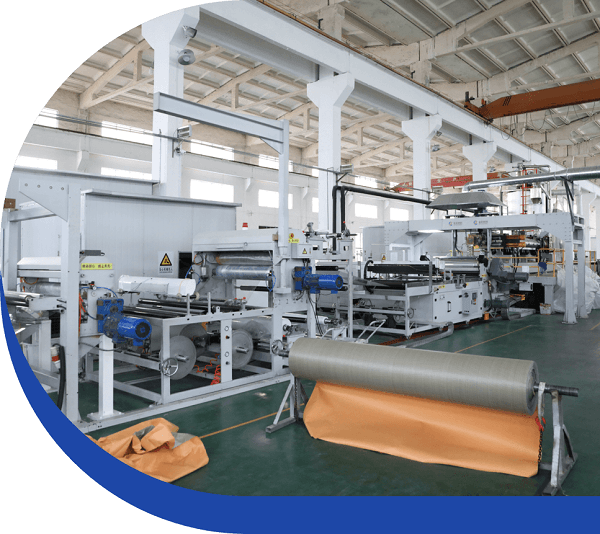

Our state‑of‑the‑art extrusion equipment allows precise control of temperature, pressure, and speed throughout the process. This ensures that every sheet emerges with consistent molecular structure and optical properties.

Thickness Tolerance: ±0.02mm

Thickness variation directly affects haze and light transmittance. A PET Sheet manufacturer that maintains tighter thickness tolerances delivers more consistent optical performance. Our fully automated PLC production equipment maintains thickness tolerances of ±0.02mm.

Cooling: Locking in Optical Properties

After extrusion, the sheet must be cooled rapidly and uniformly to achieve the desired crystallinity and optical properties. Uneven cooling creates internal stresses that can cause warping and affect clarity. Our advanced cooling systems ensure consistent cooling rates across the entire sheet surface.

3. Calendering: The Gloss Factor

For PET sheets requiring specific gloss levels, calendering plays a critical role. Calendering is a process where heated rollers apply pressure to opposite sides of a forming plastic film, affecting thickness variation, smoothness, printability, and gloss.

Gloss describes a sheet's optical properties and ability to reflect light at different locations on the material surface. When calender rolls are properly maintained, gloss variation drops significantly. In one documented case, precision ground calender rolls reduced gloss variation by 30%, indicating improved consistency in smoothness and optical properties.

For a PET Sheet manufacturer, this means every sheet delivers the same reflective quality — critical for applications where appearance matters.

4. Real‑Time Quality Monitoring: Catching Variations Before They Reach You

Quality control is an ongoing process that starts at raw material inspection and continues throughout the entire production cycle.

In‑Line Inspection

During production, we perform continuous in‑line inspections:

• Thickness gauges monitor the extruded sheet in real time. Any deviation from the specified thickness range is immediately detected, and production parameters are adjusted accordingly.

• Surface inspection detects scratches, bubbles, streaks, and other defects. If any are found, the affected section is removed, and the root cause is identified and eliminated.

Detection Systems Reduce Defect Rates

Automated detection systems reduce failure rates and stabilize quality. This means fewer rejects, less waste, and more consistent optical performance for every customer.

Final Comprehensive Inspection

After production, finished sheets undergo final comprehensive inspection. We test mechanical properties using standardized methods and evaluate optical properties including transparency, haze, and gloss. Only sheets that pass all tests are packaged and shipped.

5. Standardized Optical Testing: Measuring What Matters

Consistency isn't just about visual inspection — it's about measurable, repeatable data. As a PET Sheet manufacturer, we rely on internationally recognized test methods to quantify optical performance.

Haze & Luminous Transmittance: ASTM D1003

ASTM D1003 is the standard test method for haze and luminous transmittance of transparent plastics. Haze measures wide‑angle light scattering, while luminous transmittance measures total light passing through the material.

• Typical PET sheet haze: 1.3% ± 0.1%

• Typical PET sheet clarity: 99.2% ± 0.0%

• Typical PET sheet transmission: 89.5% ± 0.1%

These tight tolerances demonstrate what's possible when a PET Sheet manufacturer maintains strict process control.

Transparency: ASTM D1746

ASTM D1746 covers the measurement of transparency of plastic sheeting in terms of regular transmittance. This test is principally intended for use with clear and colorless thin sheeting and helps determine the visual quality of materials.

Gloss: ASTM D523

ASTM D523 measures specular gloss of non‑metallic specimens at 20°, 60°, and 85° geometries. High‑gloss materials are measured at 20°, medium‑gloss at 60°, and low‑gloss at 85°.

ISO 13636 Compliance

ISO 13636 specifies requirements and test methods for non‑oriented PET sheets made from virgin or recycled PET resin. It applies to sheets of thickness less than 2.0 mm and excludes foamed sheets and shrinkable films. Compliance with this standard demonstrates a PET Sheet manufacturer's commitment to international quality benchmarks.

How HSQY Delivers Batch‑to‑Batch Optical Consistency

As a PET Sheet manufacturer with years of experience in the industry, HSQY has built its reputation on consistent quality. Here's how we ensure optical performance stays the same — every single batch:

When you source from HSQY, you're not just buying PET sheets. You're buying predictability — the confidence that every batch will perform exactly as expected.

Frequently Asked Questions (FAQ)

Authoritative External Resources

Conclusion

Selecting the right PET Sheet manufacturer is a critical decision that impacts product quality, production efficiency, and brand reputation. Optical consistency — batch after batch — is the hallmark of a manufacturer that truly understands its materials and processes.

At HSQY, we combine virgin PET resin, precision extrusion, real‑time quality monitoring, and standardized optical testing to deliver PET sheets that meet the highest standards of clarity, haze, and gloss — every single time.
